3D filament extruder High precision ABS rainbow color extruder

3D filament extruder is a device designed for the production of 3D printing filaments (such as PLA, ABS, TPE and other plastic filaments). The high-precision ABS rainbow color extruder focuses on manufacturing ABS materials, and through precise temperature control and color management systems, it can produce ABS 3D printing filaments with rainbow gradient effects. This equipment is suitable for the production of high-quality 3D printing filaments and is widely used in many fields such as industry, education, manufacturing, as well as makers and enthusiasts.

The high-precision ABS rainbow color extruder is a high-performance device designed specifically for the production of ABS 3D printing filaments. Through precise temperature control, screw design and multi-color silo system, the device can achieve the production of ABS printing filaments with rainbow gradient effects, meeting the needs of creative and high-quality 3D printing projects.

Equipment configuration

Core components

1. Screw and barrel: The screw and barrel made of high-strength alloy steel have excellent wear resistance and corrosion resistance, can run stably for a long time, and are suitable for the processing of high-precision and high-viscosity ABS materials.

2. Intelligent temperature control system: Multi-zone temperature control system ensures stable temperature of materials during processing to avoid overheating and material degradation.

3. Rainbow color mixing system: Multi-bin feeding design can feed materials at the same time and accurately control the feeding ratio of different colors to ensure the uniformity of the rainbow color effect.

4. High-speed traction system: Accurately control the traction speed to ensure the consistency of the outer diameter of the produced wire and avoid breaking or deformation.

5. Cutting system: The precision cutting system can be cut to a fixed length according to demand to ensure the consistency of the wire length.

Control system

1. PLC touch screen control: The operation interface is friendly, and all production parameters (such as temperature, speed, feed amount, etc.) can be accurately adjusted through the touch screen.

2. Real-time monitoring function: It has the functions of real-time monitoring of equipment operation status, alarm system, fault detection, etc. to ensure smooth production process and reduce downtime.

Working Principle

The working principle of the high-precision ABS rainbow color extruder is as follows:

• Raw material feeding: ABS particles are fed into the silo through the feed port, and the raw materials are evenly fed into the extruder through the automatic feeding system.

• Temperature control and plasticization: The raw materials are heated, plasticized and mixed by the screw. Each heating zone is precisely temperature-controlled to ensure that the ABS material reaches a suitable melting state.

• Rainbow gradient color adjustment: The mixing ratio and conveying rate of ABS materials of different colors are adjusted through the multi-color feeding system to achieve the production of gradient effects.

• Extrusion and shaping: The molten ABS material is extruded and formed through a precision mold to form the required wire.

• Traction and cutting: The produced ABS wire is stretched by the traction system and cut to a fixed length by a precision cutting device, finally generating a uniform 3D printing wire.

• Cooling and winding: The cooling system allows the wire to quickly cool down and shape, and the finished product is rolled into a disk through the winding system for easy storage and transportation.

Main features

High-precision control

1. Temperature control system: Multi-zone temperature control technology is used to accurately control the temperature of each heating zone to ensure that the ABS material melts evenly during processing, avoid overheating or decomposition, and maintain high-quality finished products.

2. Precision extrusion: The precision screw and barrel design is used to ensure the consistency and accuracy of the extruded material, and ensure that the diameter tolerance of the 3D printing filament is less than ±0.05mm, meeting the requirements of high-precision printing.

Rainbow gradient color production

1. Multi-color mixing system: The equipment supports multi-color silo design, which can accurately mix ABS materials of different colors to achieve the effect of gradient from one color to another, and generate ABS printing filaments with rainbow color effects.

2. Gradient adjustment: By controlling the feed rate and temperature difference, the transition effect between different colors can be accurately adjusted to achieve a smooth and natural rainbow gradient color.

Efficient production

1. High-speed extrusion: The equipment's efficient extrusion system can support high-speed production, with a maximum output of 10-50kg/h, which can meet the production needs of large-scale 3D printing consumables.

2. Energy-saving design: High-efficiency motor and temperature control system ensure the lowest energy consumption during operation of the equipment, in line with environmental protection requirements.

Strong compatibility

1. Support for multiple materials: In addition to ABS materials, the equipment can also support a variety of 3D printing materials such as PLA, PETG, TPU, etc. to meet the different needs of customers.

2. Adapt to various printers: The 3D printing filaments produced meet the standards of common desktop and industrial 3D printers and have good compatibility.

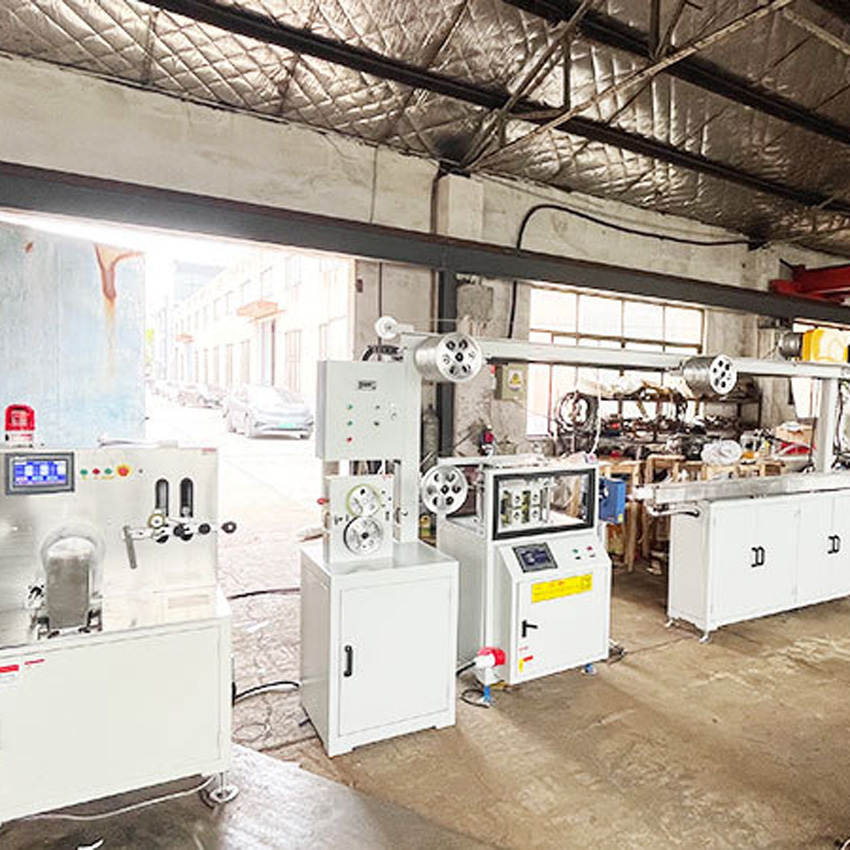

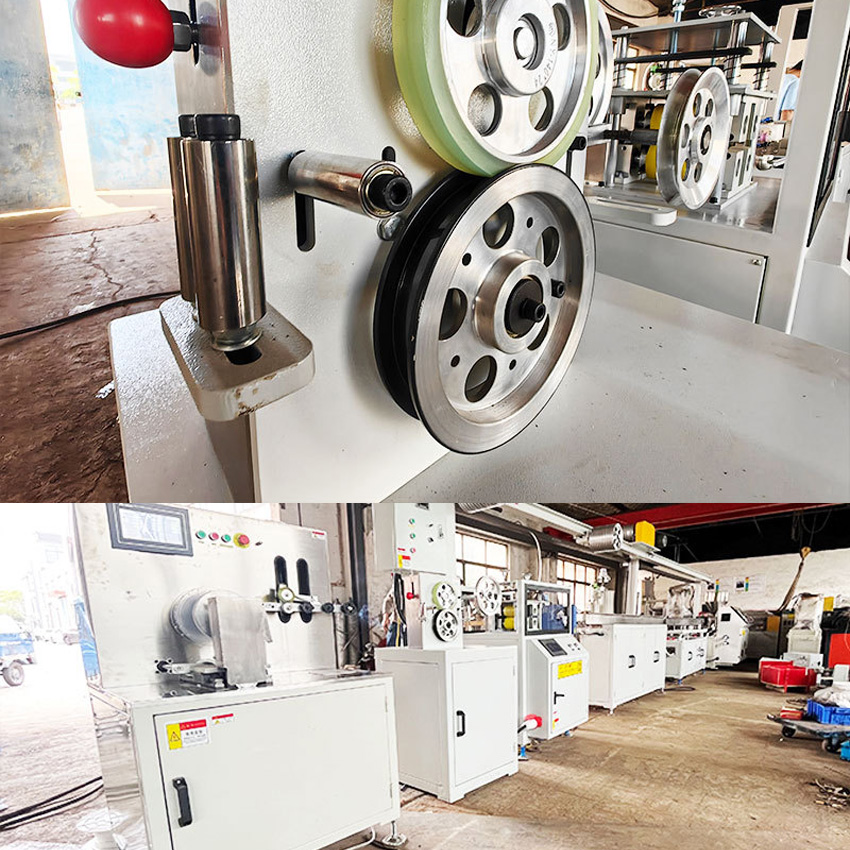

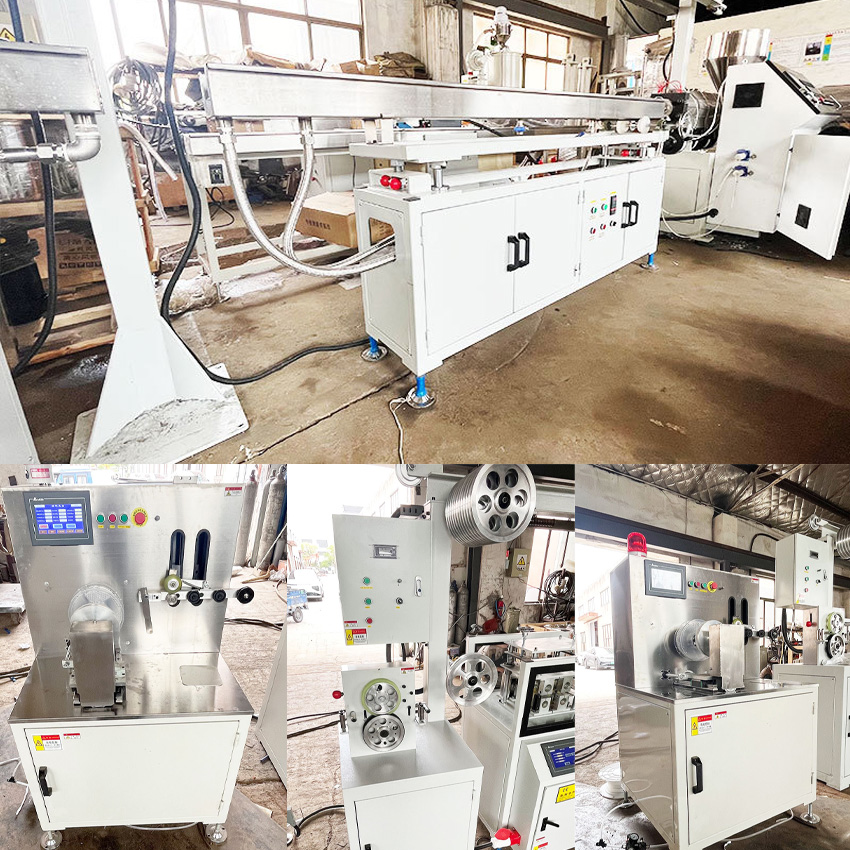

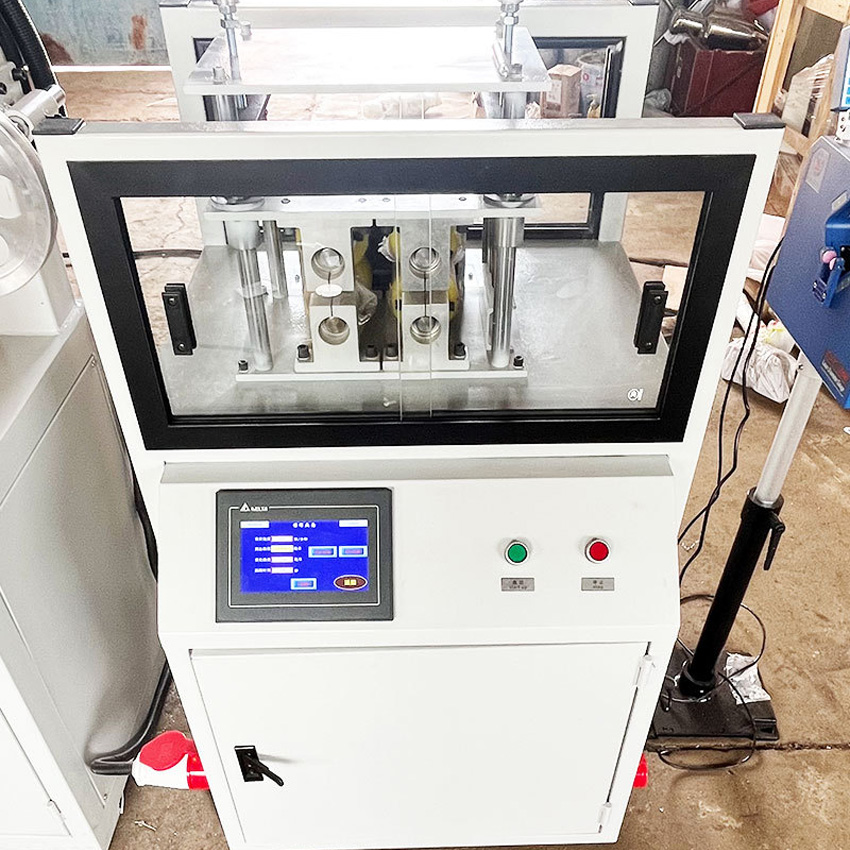

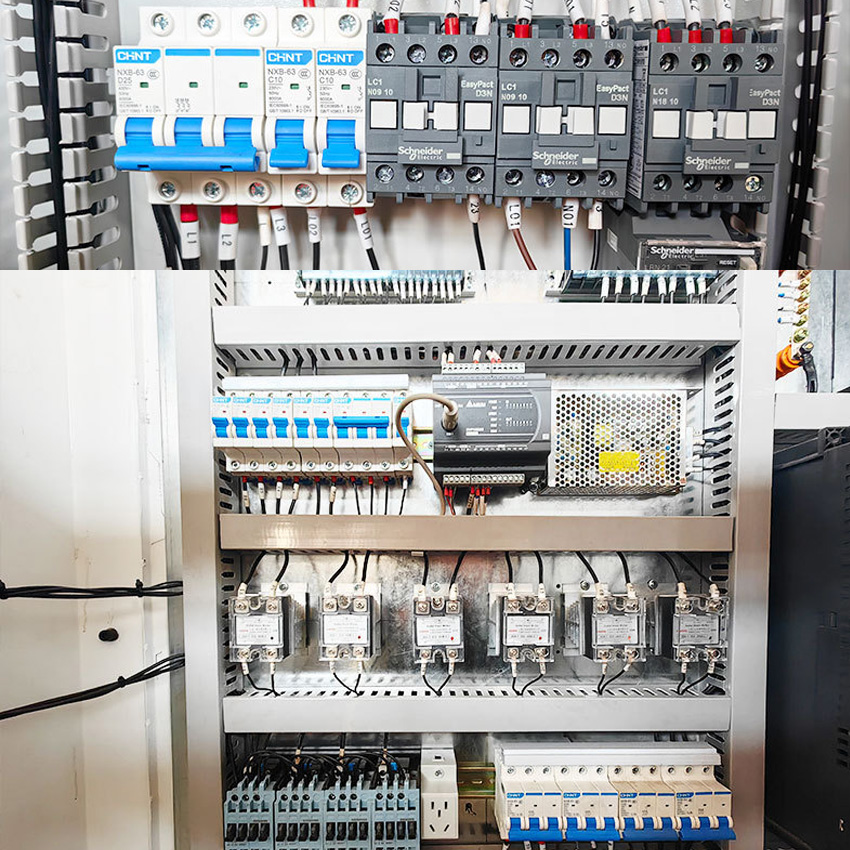

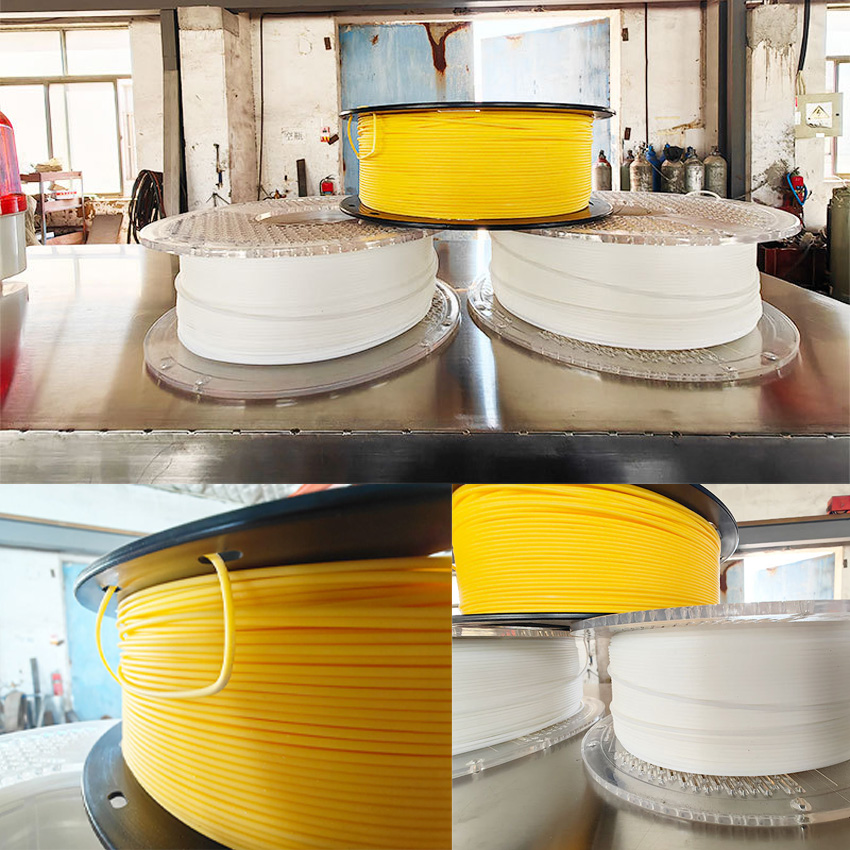

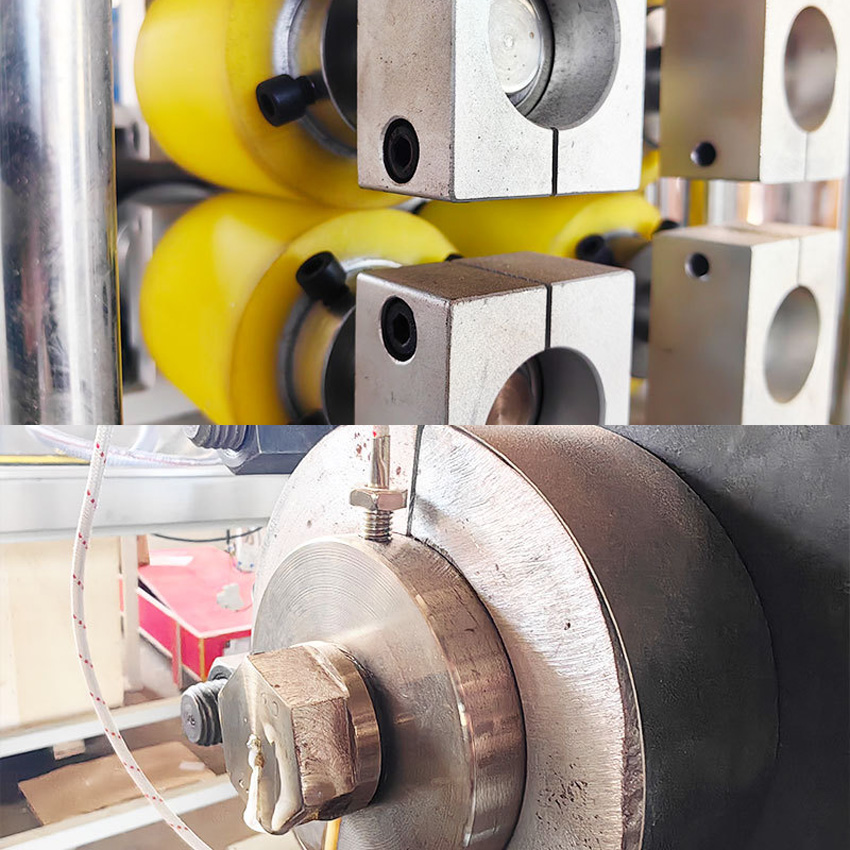

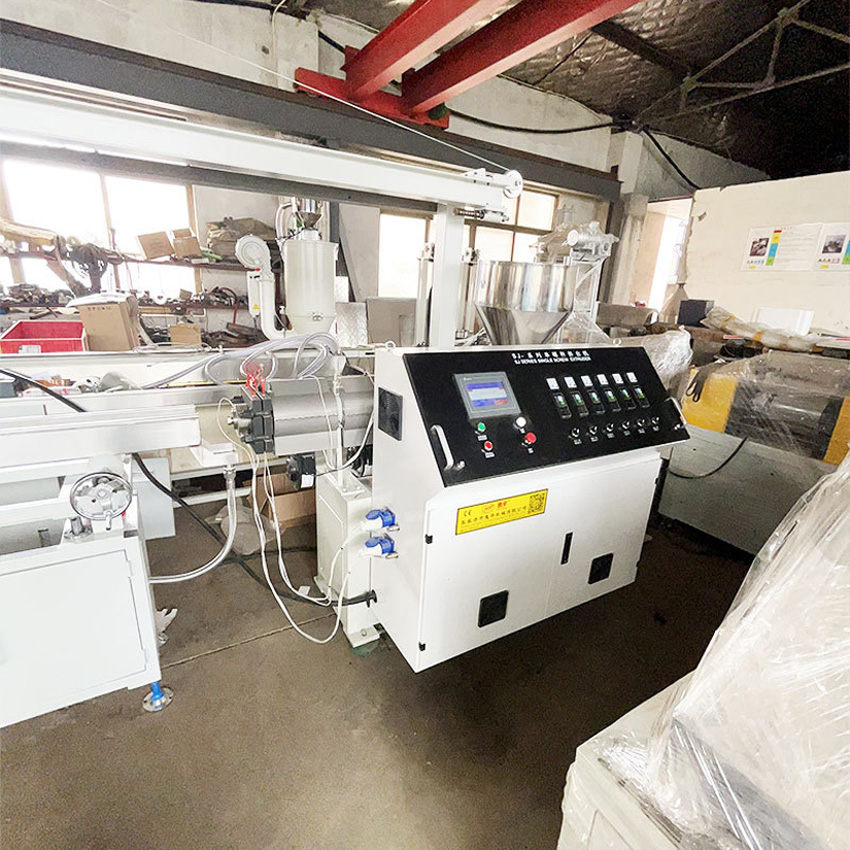

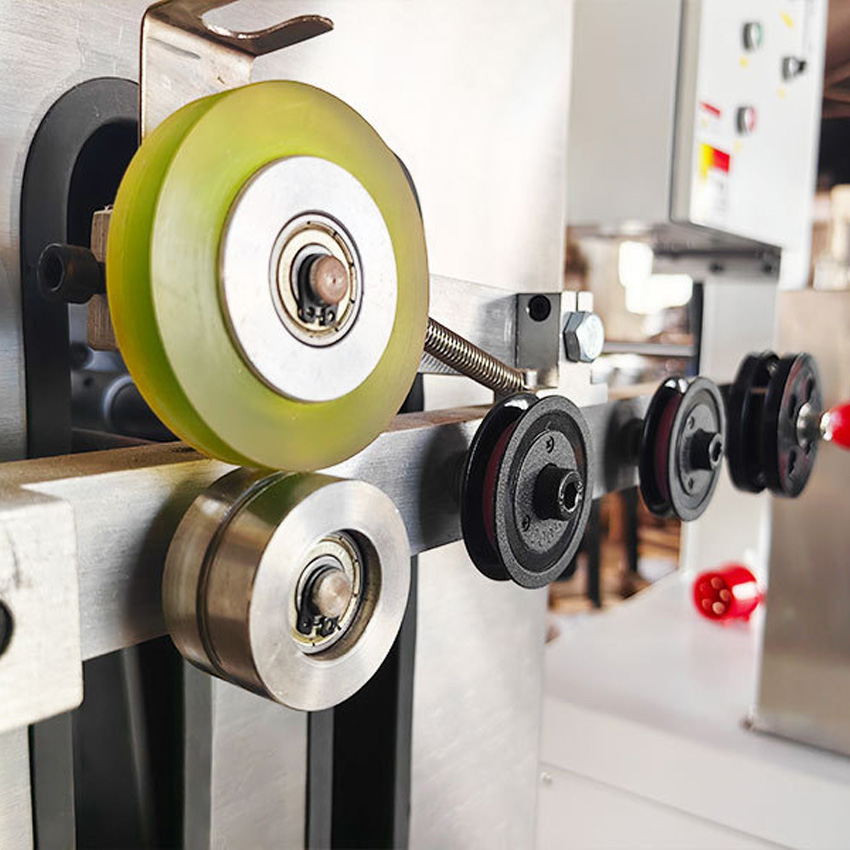

Machine real shot
