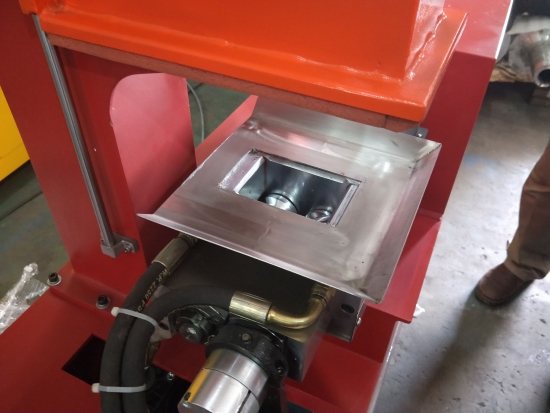

The internal mixer is mainly composed of a mixing chamber, a rotor, a feeding and pressing device, a discharging device and other parts.
Brand: OLLITAL
Warranty: 1 year
Delivery time: 7-15 days
Voltage: 380V/50Hz or customized
* All our products can be customized according to drawings and requirements.Contact our engineers now to find out the most suitable and cost-effective solution !
With Taiwan technical drawings, advanced technology in China and imported core components, this machine has character itself as environmental-friendly, high-efficiency and good dispersing effect, with human-orientated design and easy to reload and clean, it has been recognized by factory lab, universities and R&D institutions for recipe researching and small-scale production. It can also be used in electric wire, cable, electronics, sole, sports equipment and auto parts industries for rubber, plastic and chemical production mixing and plasticizing.
Detailed Product Description
Banbury Rubber Intensive Kneader Internal Mixer Price is applicable to rubber, plastic and chemical industry. And most suitable kneading application: EVA., rubber, TPR, sole, rubber roller, hoses, belts, sponges, vibration insulator, elastic cord, sealing materials, tire, tapes, master batches, pigment, ink, electric rubber parts, chemical industry compounds.
| Model | OLT-3011-0.5 | OLT-3011-1 | OLT-3011-3 | OLT-3011-5 | OLT-3011-10 | OLT-3011-15 | OLT-3011-20 |
| Volume(L) | 0.5 | 1 | 3 | 5 | 10 | 15 | 20 |
| Drive motor(KW) | 1 | 2.2 | 5.5 | 7.5 | 15 | 22 | 30 |
| Turning motor(KW) | 0.2 | 0.2 | 0.4 | 0.4 | 0.75 | 1 | 1.5 |
| Turning angle | 110 | ||||||
| Air compressor(KW) | 2.2 | 5.5 | |||||
| Water cooling(mpa) | 0.2-0.4 | 0.3-0.4 | |||||
| Electric heating（KW） | 0.8 | 0.8 | 1.2 | 1.8 | 1.9 | 2.1 | 4 |
| Weight(KG） | 500 | 800 | 1000 | 1200 | 2300 | 2800 | 4500 |
| Remark: Electricity heating & Water cooling ( option) | |||||||
The feature for dispersion kneader
1. An automatic temperature and time control system to provide a 100% mixing result.
2. Easy to clean chamber and changing colors.
3. In6~10minutes/batch of output equivalent to 2 units of open mixing mill.
4. Pressurized and sealed mixing chamber to provide high mixing performance and prevent the environment.
5. Easy installation, operation and maintenance, lower the running cost.
