The film blowing machine quickly converts plastic particles into uniform, thin films through processes such as extrusion, blowing and pulling.
| Brand: | OLLITAL |
| Model: | OLT-DG500 |
| Warranty: | 1 year |
| Power | 3∮, AC380V |
| Delivery time: | 7-15 days |
* All our products can be customized according to drawings and requirements.Contact our engineers now to find out the most suitable and cost-effective solution !

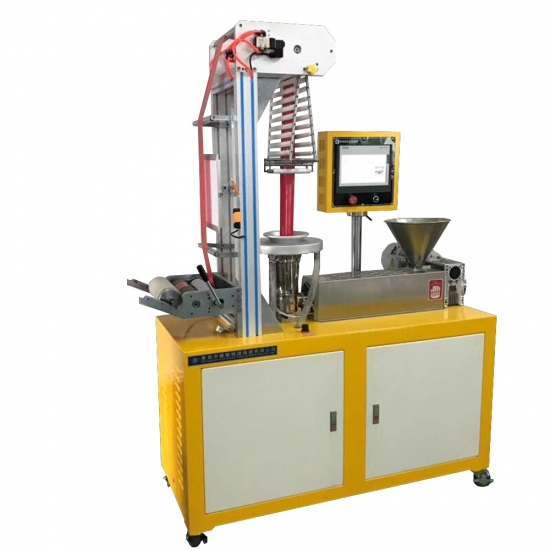

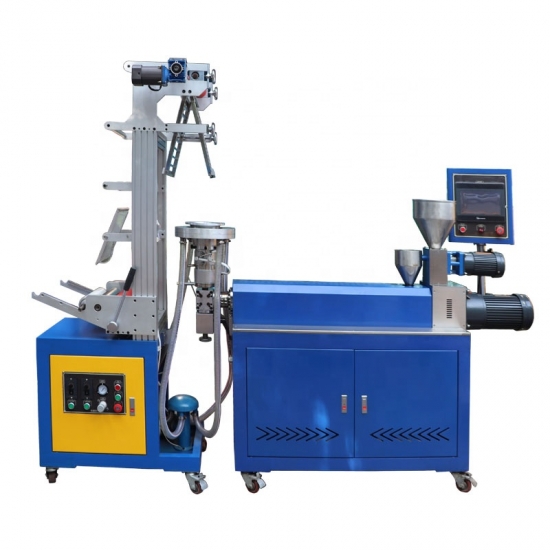

The machine is used to test the feasibility of blown film of polymer materials.This product is mini model with compact size and fine structure.It is suitable for PE materials.The whole machine is heated by mica, and the heating time is only 20 minutes.The feeding speed, traction speed and winding speed can be adjusted manually.This machine equipped with four temperature control modules.The heating zone temperature can be dynamically displayed and the heating temperature can be manually adjusted.
| Model | OLT-432(Single layer) | OLT-432-2(Double layers) | OLT-432-3(Three layers) |
| Screw diameter (mm) | 25 | 25 | 25 |
| L/D | 1:33 | 1:33 | 1:33 |
| Screw speed (Speed Adjustable) | 0~95rmp | 0~95rmp | 0~95rmp |
| Main Motor power (KW) | 2.2 | 2.2*2 | 2.2*3 |
| Die | Hanger Type | Hanger Type | Hanger Type |
| Die lip width | 300 or cunstomzied | 300 or cunstomzied | 300 or cunstomzied |
| Machine size(H*W*D)mm | 2500*800*1700 | 2600*960*2100 | 3200*1200*2100 |
| Power Supply | 3∮, AC380V | 3∮, AC380V | 3∮, AC380V |
