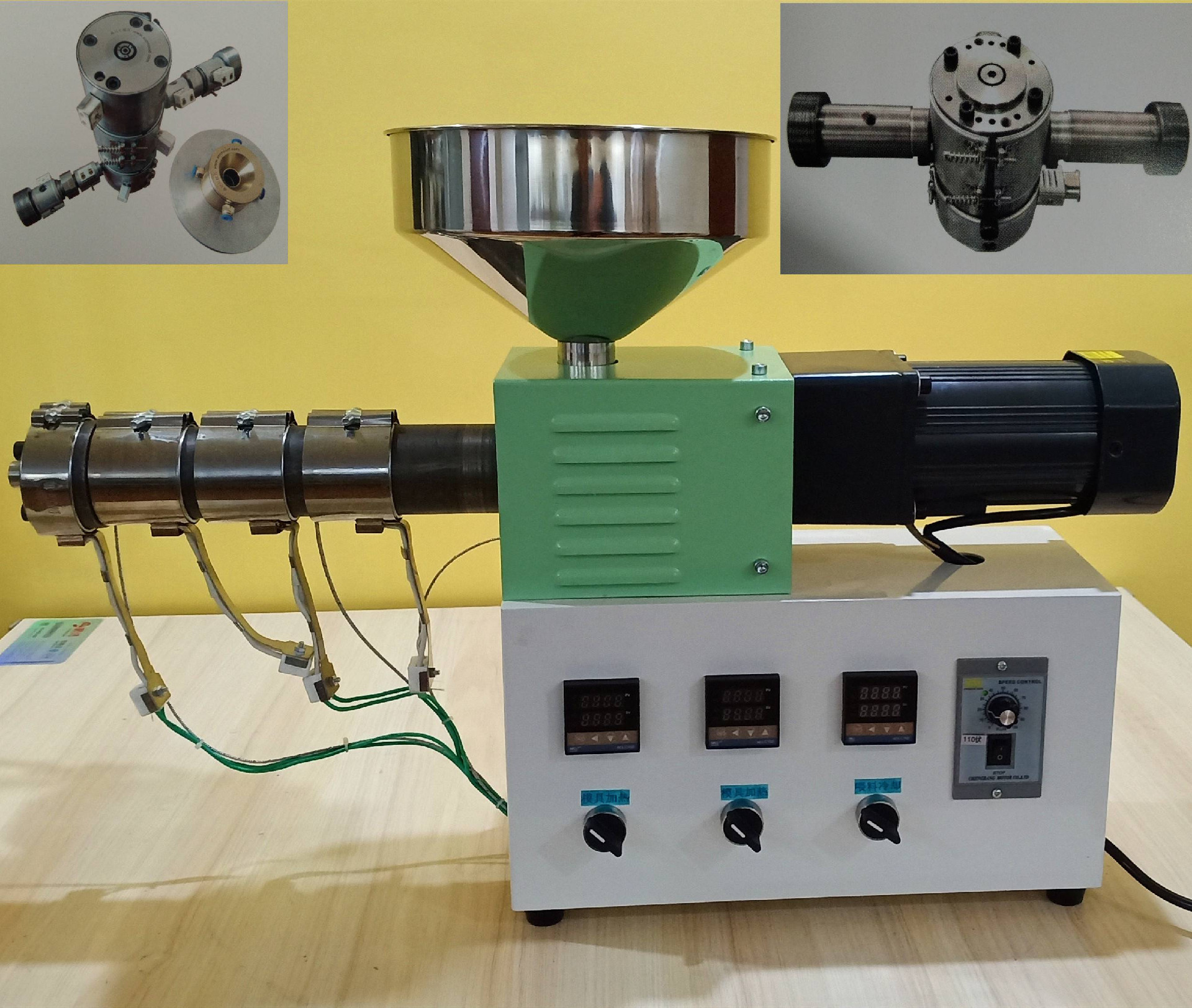

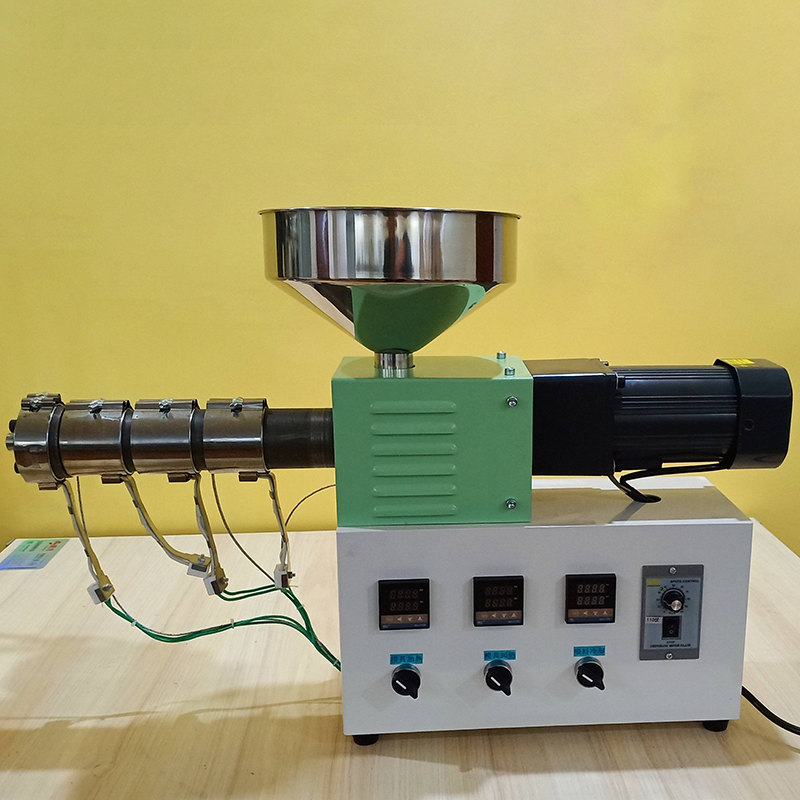

Mini lab plastic extruder always be used for test or lab research with small capacity and low energy consumption.
Brand: OLLITAL
Warranty: 1 year
Delivery time: 7-15 days
Weight: 30KG
Total power: 0.25kw
Voltage: 220V/50Hz or customized
* All our products can be customized according to drawings and requirements.Contact our engineers now to find out the most suitable and cost-effective solution !

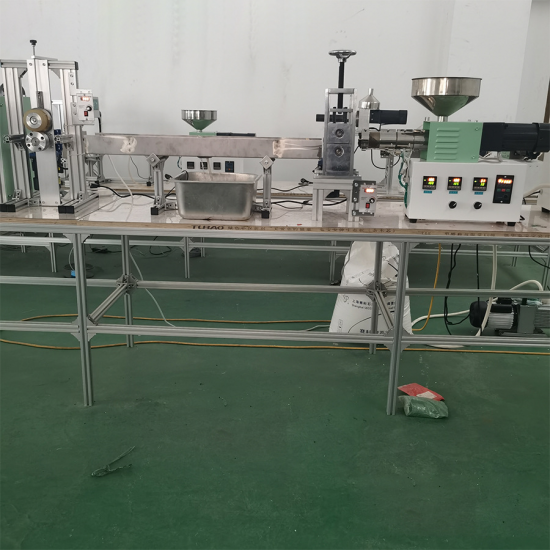

Single screw extruder specially designed for PP PE HDPE pellets extruding, it also can combine with the PP PE PC pipe production line, PP PE PC profile production line.We produce Single screw extruder, and also high speed high efficient Single screw extruder.The set is advanced in design,high in output,good in plasticization and low in energy consumption.The involute gear driving is characterized by low noise,stable running,big bearing capacity and long service life.
Single screw extruder' screw structure also can re-designed accoring to customer's detail raw material and the purposes.

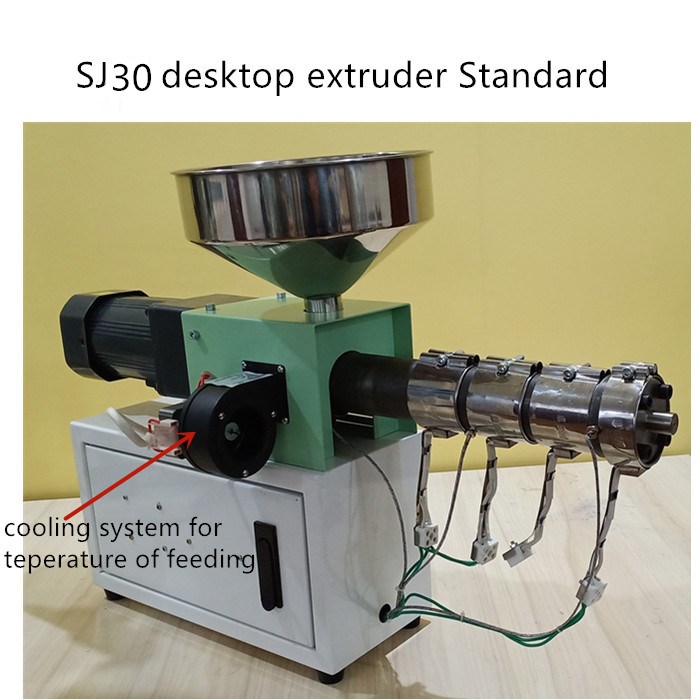

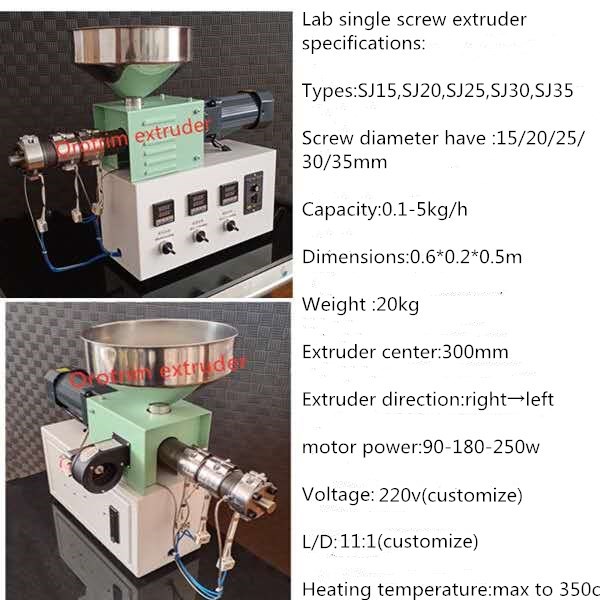

| Model | SJ15 | SJ30 | SJ35 |
| Production capacity | 0.01-0.5kg/h | 1-3kg/h | 3-5kg/h |
| Screw diameter | 15mm | 30mm | 35mm |
| L/D | 14:1 | 13:1 | 13:1 |
| Heating temperature | RT-300℃ | ||
| Voltage | 220-240V 50/60HZ 1 PHASE OR CUSTOMIZE | ||
| Power | 90W | 250W | 300W |

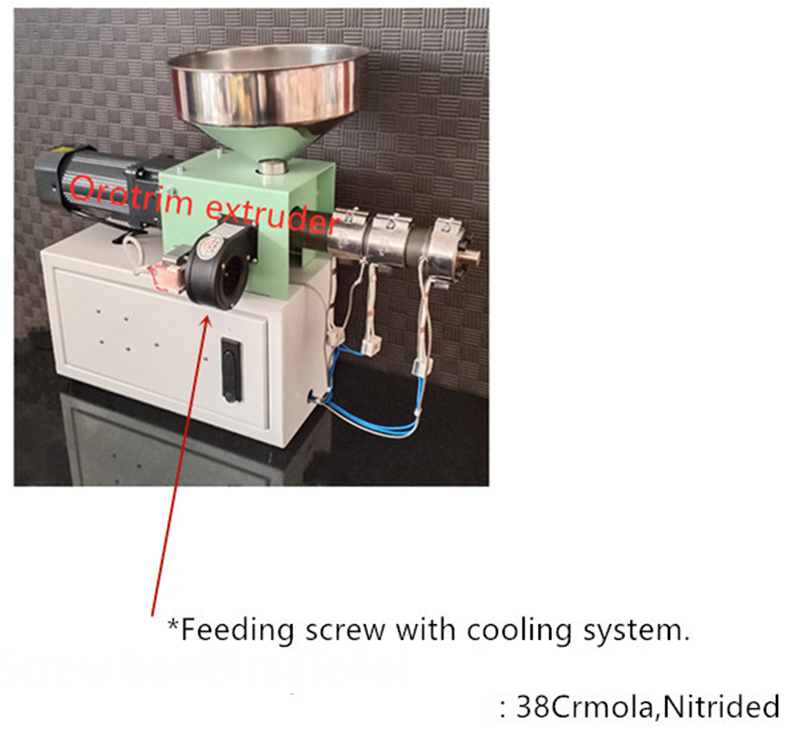

| Screw and barrel material | 38Cemola.Nitrided | 38CrMoAIA | 38CrMoAIA |
