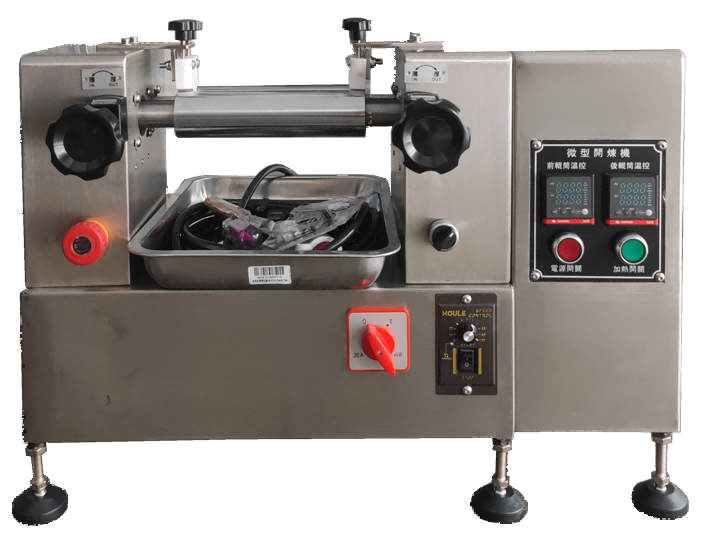

2-inch Two Roll Mill Electrical Heated

1. Mixed capacity: 2—20g

2. Drum temperature: normal temperature~300 ℃

3. Heating method: Electric heating (latest process design, patented electric heating, automatic constant temperature and precision)

4. Temperature accuracy: ± 2 ℃ (The temperature controller adopts a high-precision PID intelligent microcomputer control system, with automatic calculation function of internal constants, which is more accurate than manual setting and time-saving. It has an over temperature alarm function to protect machinery and production materials) (Huibang)

5. Drum speed: around 0-13 revolutions per minute (adjustable speed)

6. Roller speed ratio: 1:1.20 (customized for other ratios)

7. Drum size: ф 50mm × L150mm (surface coated with hard chrome polishing treatment, non stick material, no delamination)

8. Roller spacing: Adjustable from 0.1 to 3mm

9. Safety device: an emergency stop button

10. Motor: 300W1 units

11. Volume: (W × D × H) 660 × 360 × 500mm

12. Drum lubrication: The excellent wear-resistant bearing has a large contact area, which prolongs the service life by two-thirds compared to traditional copper sleeves

13. Mechanical structure: Steel plate (lighter weight, smaller volume, higher mechanical strength, and better toughness than traditional cast iron)

14. Power supply 3 #, AC220V, 5A three pin power plug commonly used for household voltage (very convenient)

15. Weight approximately 60kg
