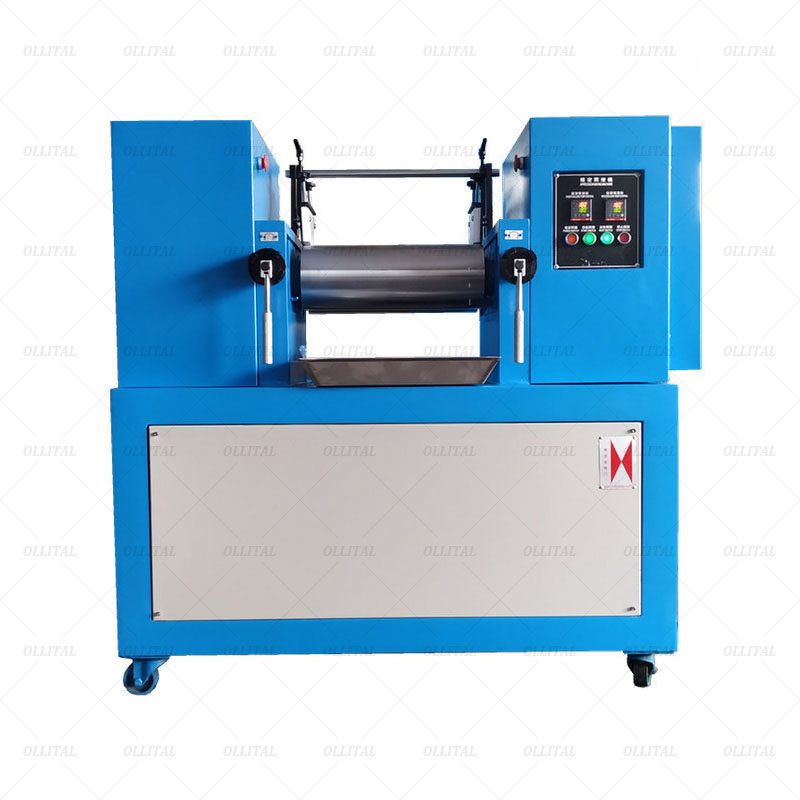

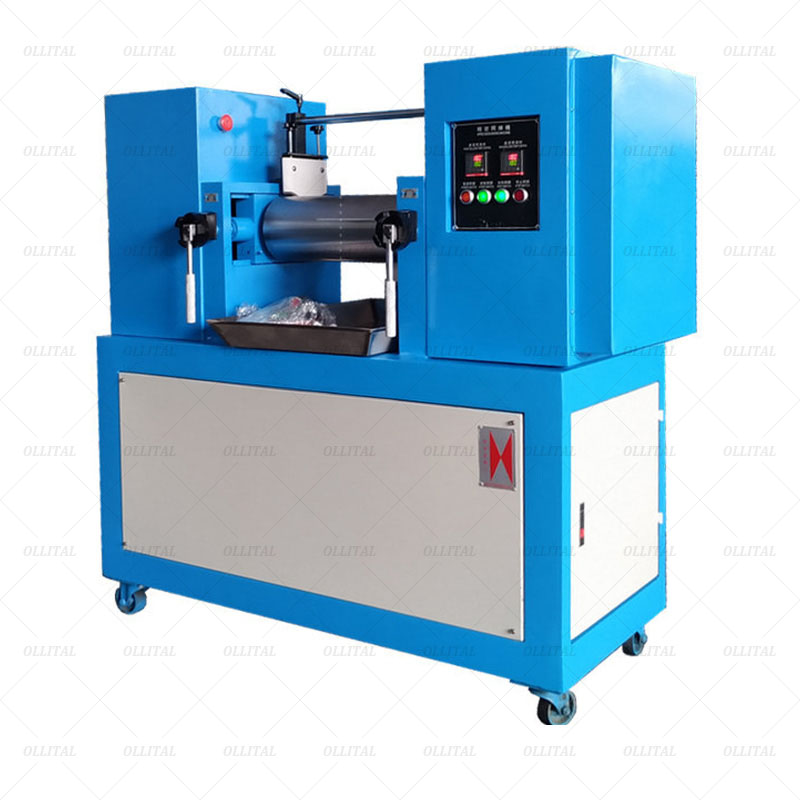

The 7-inch Small Rubber Two Roll Open Mill is a compact and efficient piece of equipment designed for the mixing, blending, and refining of rubber ...
| Brand: | OLLITAL |
| Model: | OLT-ZG180DRL |
| Warranty: | 1 year |
| Delivery time: | 7-15 days |
| Weight: | 480kg |
| Total power: | 3.7 Kw or customized |
| Voltage: | 220V/50Hz or customized |
| Length, width and height: | 1200*600*1300 mm |
| Control mode: | Customize fixed speed or add variable speed drive |
| Applicable to: | Mixing, plasticating, grinding, stirring and blending of rubber, plastic and other materials |
* All our products can be customized according to drawings and requirements.Contact our engineers now to find out the most suitable and cost-effective solution !
The 7-inch Small Rubber Two Roll Open Mill is a compact and efficient piece of equipment designed for the mixing, blending, and refining of rubber compounds, thermoplastics, and other materials in laboratory or small-scale production environments. It is widely used in research, development, and testing applications within the rubber, plastic, and chemical industries.
The 7-inch Small Rubber Two Roll Open Mill features two horizontally aligned rollers that rotate in opposite directions to create shear and compressive forces, effectively mixing and kneading materials. The mill can be equipped with various heating options, such as electric heating, oil heating, or water cooling systems, depending on the material requirements. It is commonly used for preparing rubber compounds, blending thermoplastics, and mixing other materials to achieve the desired properties.
Roller Diameter: 7 inches (approximately 175 mm)
Heating System: Can be equipped with electric heating, oil heating, or water cooling systems
Use Case: Primarily used for rubber compounding, thermoplastic mixing, and material testing in laboratories or small-scale production settings
Increased Mixing Capacity: The 7-inch rollers allow for handling larger quantities of material compared to smaller mills, making it suitable for higher-volume laboratory tests and small batch production.
Improved Mixing Performance: The larger roller size facilitates better material distribution and ensures uniform mixing, leading to high-quality finished products.
Customizable Heating Options: The mill can be equipped with an electric heating system, an oil heating system, or a water cooling system based on the temperature control requirements of different materials.
Precise Temperature Control: Ensures accurate temperature management to prevent overheating or degradation of materials, especially when working with heat-sensitive compounds.
Wide Range of Gap Adjustments: The gap between the rollers can be adjusted from 0.1 mm to 6 mm, allowing for customization based on material characteristics and processing requirements.
Optimal Material Processing: Fine-tuning the roller gap ensures effective mixing and refining of various materials.
Durability and Resistance: The rollers are made from high-strength alloy steel, with additional surface treatments such as chrome plating or nitriding to enhance wear resistance and extend the operational life of the mill.
Non-Stick Surface: The chrome-plated or nitrided surface prevents material adhesion, ensuring easier cleanup and preventing cross-contamination between batches.
Emergency Stop System: Equipped with multiple emergency stop buttons, providing a safe and user-friendly operation environment.
Humanized Design: The machine includes reverse functions and other ergonomic features that minimize the risk of operator injuries.
| Parameter | Specification |
| Mixing Capacity | 0.2—4 kg |
| Roller Temperature | Ambient Temperature to 300°C |
| Heating Method | Electric heating & water cooling (new process design, automatic constant temperature control) |
| Temperature Accuracy | ±2°C (PID intelligent microcomputer control system with automatic constant calculation, higher precision than manual settings, includes over-temperature warning to protect machinery and materials) |
| Roller Speed | Fixed speed of 19 RPM, variable frequency speed control available, other speeds can be customized |
| Roller Speed Ratio | 1:1.27 (can be customized according to customer requirements) |
| Roller Size | φ180mm × L350mm (high hardness surface chrome-plated treatment, non-stick, no delamination) |
| Roller Gap | Adjustable from 0.1 mm to 6 mm |
| Safety Features | Multiple touch-type emergency stop buttons (with reverse function, ergonomic design to prevent operator injury) |
| Motor | 3.7 kW, 1 unit (new process design, mechanical structure adjustment, provides the same torque as traditional 5.5 kW systems for energy saving) |
| Power | 16 kW |
| Dimensions | (W × D × H) 1200 × 550 × 1380 mm (smaller volume compared to traditional designs with the same functionality) |
| Roller Lubrication | High-durability bearings with a larger contact area, extending the service life by 2/3 compared to traditional copper sleeves |
| Mechanical Structure | Steel plate (lighter, more compact, higher mechanical strength and toughness than traditional cast iron) |
| Power Supply | 5∮, AC 380V |
| Weight | Approximately 490 kg |
* All our products can be customized according to drawings and requirements.Contact our engineers now to find out the most suitable and cost-effective solution !
Rubber Compounding: The mill is ideal for mixing rubber compounds, incorporating additives such as plasticizers, curing agents, and fillers into raw rubber.
Testing and Research: Laboratories use the mill to prepare rubber samples, test new formulations, and develop custom rubber compounds for specific applications.
Blending Thermoplastics: The mill is used to blend different thermoplastic polymers and elastomers, allowing for customization of material properties.
Polymer Additives: It efficiently integrates colorants, fillers, and other additives into polymer matrices for improved performance.
Custom Material Formulations: Ideal for developing new material formulations and prototypes for small-scale testing.
Prototyping: The mill allows for the production of small batches for prototype testing before scaling up to full production.
