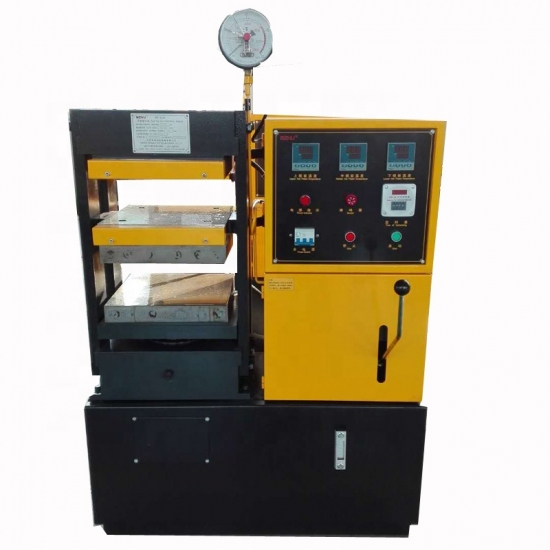

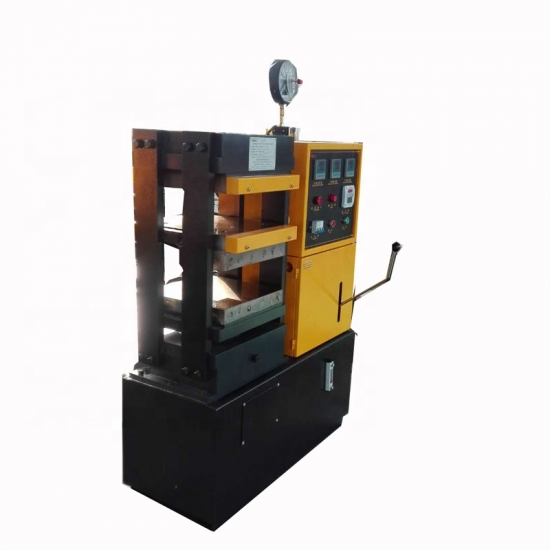

Vulcanizing machines produce rubber seals and gaskets for various machinery and pipelines to ensure sealing performance
Model Number: OLT-406
Minimum Order Quantity: 1
Operation method: Touch Screen
Warranty: 1 year
* All our products can be customized according to drawings and requirements.Contact our engineers now to find out the most suitable and cost-effective solution !
Vulcanizing machine is an important equipment for vulcanization molding of rubber products.Vulcanizing press is very important in the production of rubber products and plays a key role in improving production efficiency and ensuring product quality and performance.
| Model | OLT-406A | OLT-406B | OLT-406C | OLT-406C |
| Control mode | Manual Type | Electrice Type | PLC Control | Vacuum |
| Pressure(T) | 10/20/30/50/75/100 tons or customized | |||
| Temperature range | Room temperature -300 ℃ | |||
| Size of working board(mm) | 300*300mm or customized | |||
| Volume(mm) | 750*400*800 | 1000*600*1600 | 1000*600*1600 | 1100*600*1700 |
| Weight(kg) | 210 | 750 | 750 | 800 |
| Power supply | 3∮,AC380 | |||
| Special models can be designed according to customers' requirements | ||||
* All our products can be customized according to drawings and requirements. Contact our engineers now to find out the most suitable and cost-effective solution!
Working principle
- Heating principle: Using heat sources such as electricity, steam, and heat-conducting oil, the mold is made to reach the temperature required for vulcanization through heating plates, heating tubes and other devices, generally at 140℃-180℃, so that the rubber molecules undergo cross-linking reactions.
- Pressurization principle: Relying on the hydraulic system or mechanical transmission system to provide pressure for the rubber vulcanization process, ensure that the rubber flows in the mold to fill the cavity, exhaust the gas, and make the product structure tight. The pressure is usually 10MPa-30MPa.

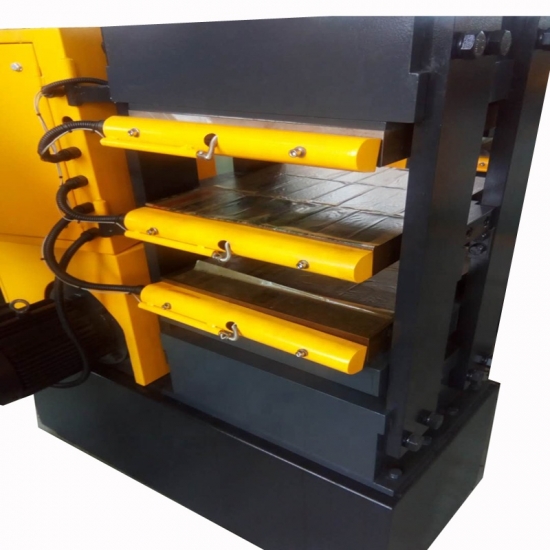

- Main machine part: mainly includes upper and lower heating plates, with molds placed in the middle, and columns connecting the heating plates, etc., to provide space for heating and pressurization for vulcanization.
- Hydraulic system: composed of oil pumps, cylinders, hydraulic valves, etc., which can generate and control pressure so that the heating plate applies appropriate pressure to the mold.
- Electronic control system: including temperature controllers, pressure controllers, timers, etc., which can accurately control parameters such as vulcanization temperature, pressure and time.
Application areas
- Tire manufacturing: used for vulcanization molding of tires for cars, bicycles, etc. to ensure the strength, wear resistance and sealing of tires.
- Rubber seal production: production of rubber seals, gaskets, etc. for various machinery and pipelines to ensure sealing performance.
- Rubber shoe production: vulcanization combination of the sole and upper of rubber shoes to improve the durability and comfort of rubber shoes
