Product Description

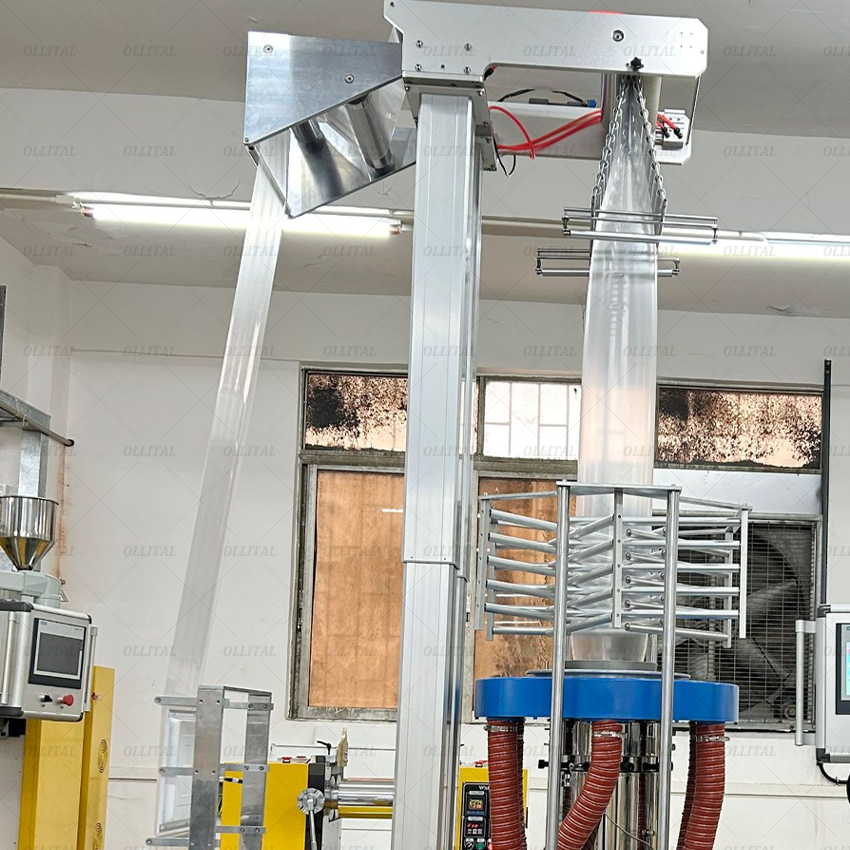

National patent small laboratory film blowing machine, applicable to a variety of materials bonding, masterbatch dispersion performance measurement, optimization of production process parameters, the study of the material's blown film molding performance, is a scientific research, teaching demonstration, production enterprise laboratory use. Small precision three-layer co-extrusion blown film machine consists of three precision single-screw extruder, three-layer co-extrusion blown film die head and blown film auxiliary machine, using precision extrusion and high-performance blown film molding technology, wide range of adjustment of process parameters, equipment applicability. It can be used for polymer material performance testing and blown film molding process research, can be equivalent to the production line, can improve the experimental efficiency, shorten the product development cycle, is the ideal experimental equipment for high-precision, high-performance film molding.

Equipment features:

Ø Adopts servo motor drive, stepless accurate speed regulation, stable plasticizing and good consistency.

Ø Digital design co-extrusion die head, smooth flow channel without dead-end stagnant material, even material discharge

Ø Electric lifting of film frame is convenient for film guiding and process adjustment.

Ø Adopts vector wind ring, energy saving and low noise.

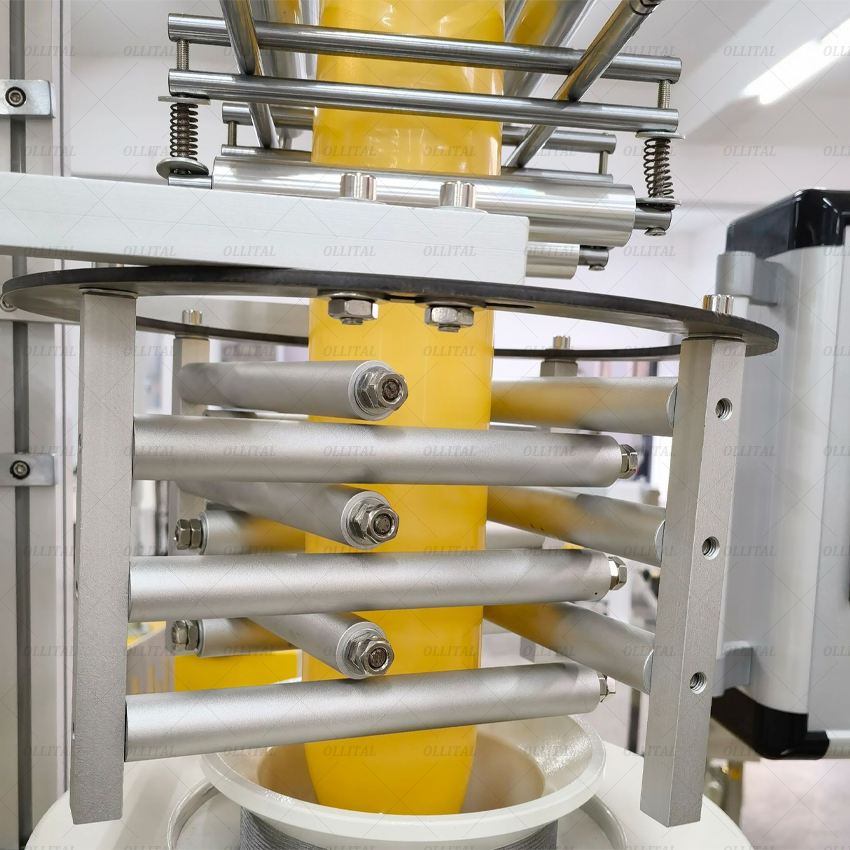

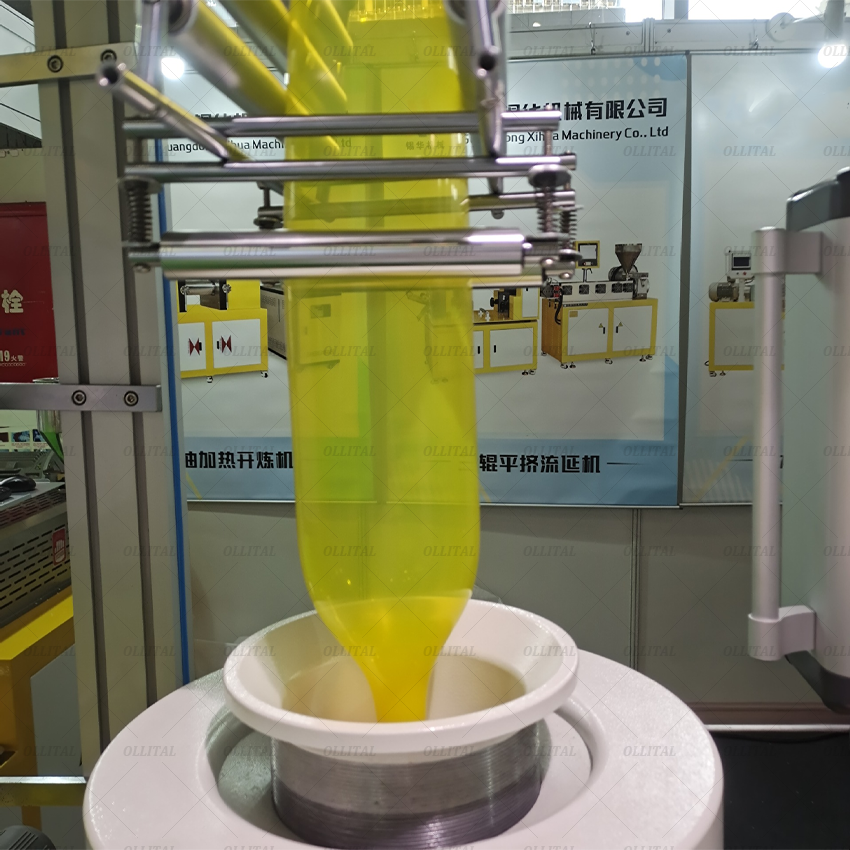

Ø Professional customized small diameter film bubble control, stable width.

Ø Traction servo motor speed closed-loop control, longitudinal film speed is accurate and stable.

Ø Computer-based measurement and control system with friendly operation interface, easy to control and more powerful functions.

Ø Real-time measurement and graphic display of important data such as extrusion system, easy to observe.

Scope of application:

Ø For color masterbatch manufacturing company to test the “color separation” and “plasticity” of color masterbatch.

Ø For large-scale blown film factories to test materials.

Ø Functional masterbatch for testing performance

Ø For universities, research institutes and enterprises to test the material properties of new materials.

Ø New material formulation development

Ø Blown film performance testing

Ø Blown film production process optimization

Ø Preparation of three-layer blown tubular film

Instrument features:

1.Extruder is driven by servo motor of international brand, with stable plasticization and good consistency;

2.Extruding device: Barrel and screw are the key parts of this machine, where plasticizing and extruding of materials are carried out. The barrel and screw are made of high-quality nitrided steel 38crmoala, and the surface has been treated with one-week gas nitriding, which has good mechanical properties such as high hardness, wear-resistance and corrosion-resistance, and greatly prolongs its service life.

3.The barrel heating of this machine adopts cast aluminum heater with stainless steel wind cover, which is beautiful and energy-saving, with good heat-resistant performance, long service life, even heat transfer, and easy to be replaced; the fan cools through the set channel (automatically opens the fan for cooling in case of over-temperature), which has a good cooling effect.

4.Transmission device: Drive motor and reducer directly connected to the reducer output shaft and screw connection, drive screw rotation. The transmission device has a compact structure, smooth operation and strong bearing pressure.

5.Emergency stop device and all kinds of safety protection, to protect the safety of operators;

6.Highly intelligent, easy to operate.
