Casting machine can be used for polymer material performance testing and blown film molding process research, can be equivalent to the production line.
| Brand: | OLLITAL |
| Model: | OLT-432 |
| Warranty: | 1 year |
| Power | 3∮, AC380V |
| Delivery time: | 7-15 days |
* All our products can be customized according to drawings and requirements.Contact our engineers now to find out the most suitable and cost-effective solution !

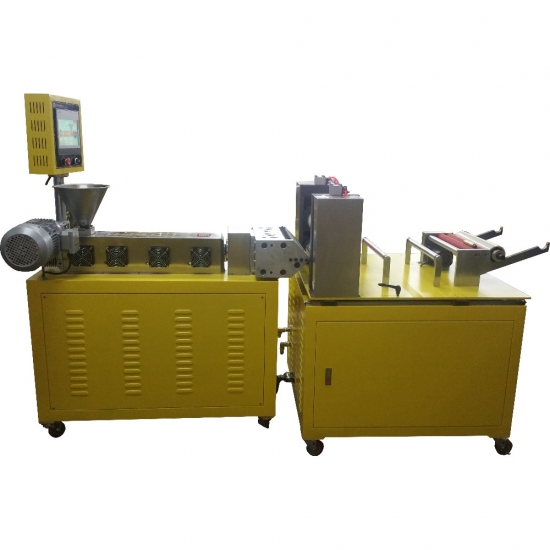

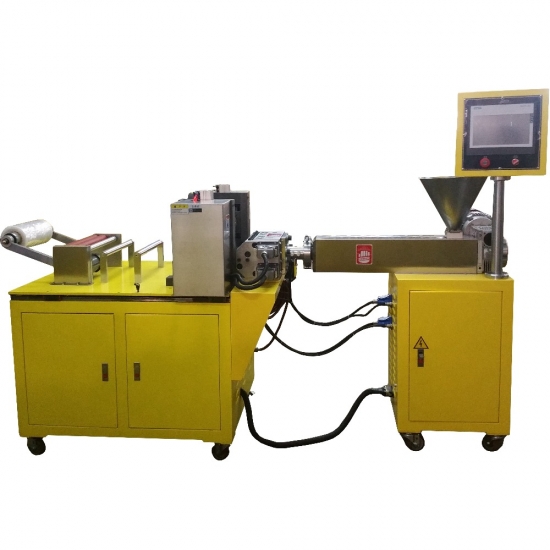

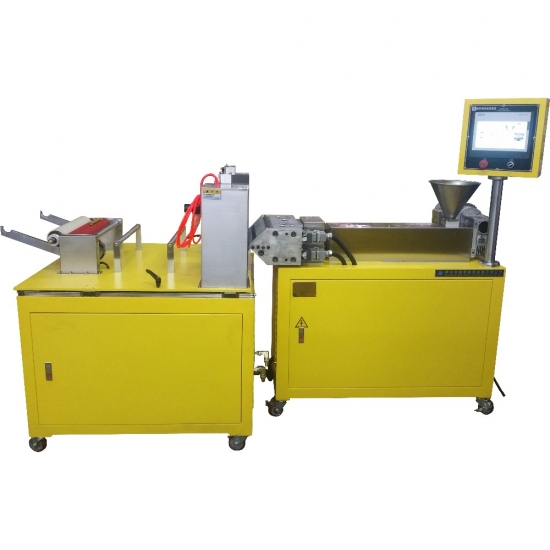

Cast film extrusion line consist of a lab precise single screw extruder, a molding system(die), a film casting, haul-off & winding machine and a SIEMENS PLC Touching Screen Control System. It not only has wide range of technology adjustment (including speed, temperature, pressure, thickness, etc.), but also has a lot of functions such as real-time parameter acquistion, graphic displaying, recording and storing. It is an ideal tool for research institute to develop new material formula and film shaping technology.
Adopting international brand variable speed control motor for the extruder to make the plasticization stable and constant
Using brand melt pressure and temperature sensor to ensure high accurage data

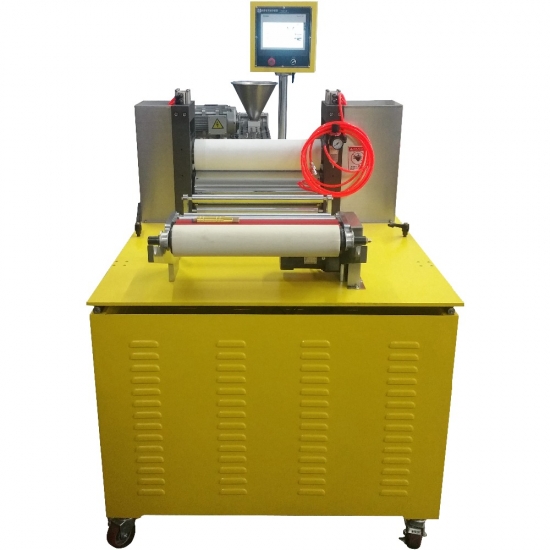

Cantilever roll structure making it easy to lead the film and be operated;

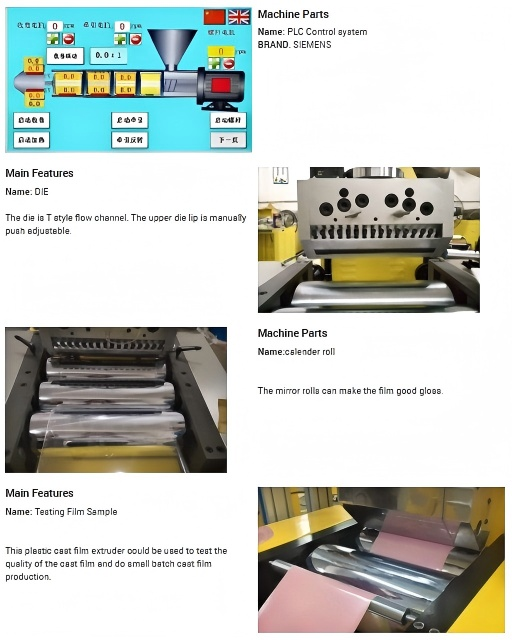

Dopting PLC control system and friendly operation interface to easily operate;
On-line testing and displaying melt pressure, temperature and other key data;
Emergency stops and devices to protect safety of the operator;
| Model | OLT-432(Single layer) | OLT-432-2(Double layers) | OLT-432-3(Three layers) |
| Screw diameter (mm) | 25 | 25 | 25 |
| L/D | 1:33 | 1:33 | 1:33 |
| Screw speed (Speed Adjustable) | 0~95rmp | 0~95rmp | 0~95rmp |
| Main Motor power (KW) | 2.2 | 2.2*2 | 2.2*3 |
| Die | Hanger Type | Hanger Type | Hanger Type |
| Die lip width | 300 or cunstomzied | 300 or cunstomzied | 300 or cunstomzied |
| Machine size(H*W*D)mm | 2500*800*1700 | 2600*960*2100 | 3200*1200*2100 |
| Power Supply | 3∮, AC380V | 3∮, AC380V | 3∮, AC380V |
