The compound distributor can combine the raw materials delivered by the extruder evenly and stably through distribution and compounding.
| Brand: | OLLITAL |
| Model: | OLT-432-30-40-3 |
| Warranty: | 1 year |
| Delivery time: | 30 days |
| Weight: | 2000kg |
| Total power: | 11 Kw or customized |
| Voltage: | 220V/50Hz or customized |
| Length, width and height: | 8000*1400*2300 |
| Control mode: | Customize fixed speed or add variable speed drive |
| Applicable to: | The three-layer co-extrusion cast film machine can be used to produce: PP/PE cast film (CPP/CPE) PS, ABS, PC, PET, PLA, EVOH or PA packaging barrier films, sanitary product films, embossed and structural films, stretch films, adhesive films, and cling films. |
* All our products can be customized according to drawings and requirements.Contact our engineers now to find out the most suitable and cost-effective solution !

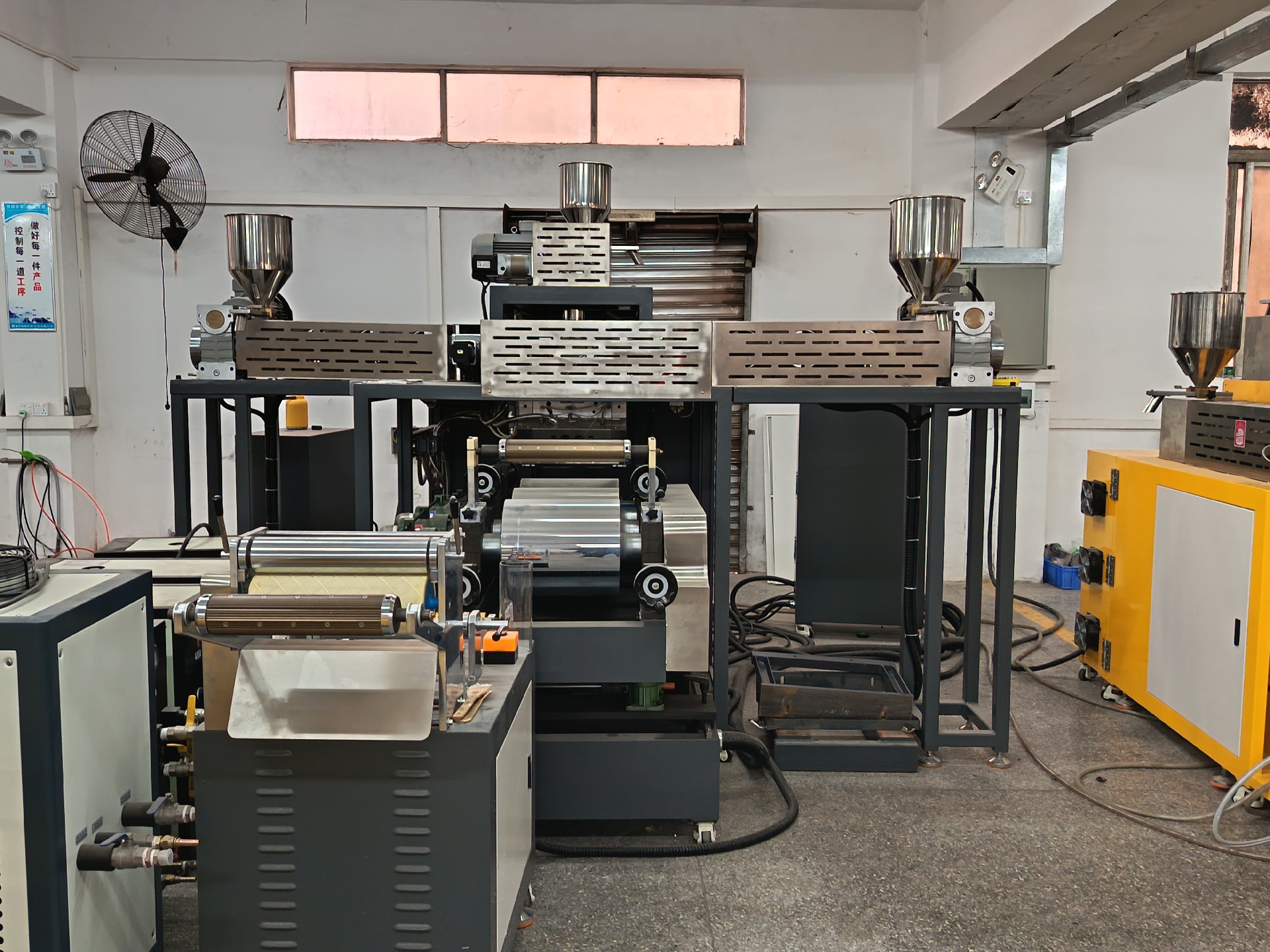

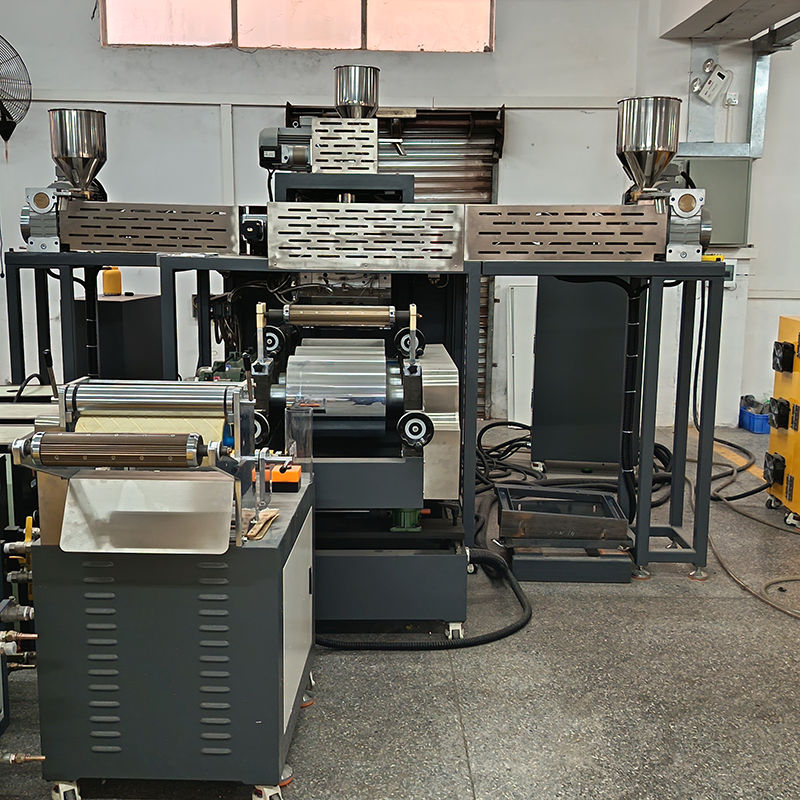

A three-layer casting machine is a type of equipment used to produce multi-layer films or sheets by extruding and combining three different materials simultaneously. It is widely used in various industries, including packaging, electronics, and medical fields.
1. Material Feeding:Three different materials are fed into separate extruders.
2. Melting and Extrusion: Each extruder melts and extrudes its respective material into a molten state.
3. Layer Formation: The three molten materials are combined in a multi-manifold die or feedblock to form distinct layers.

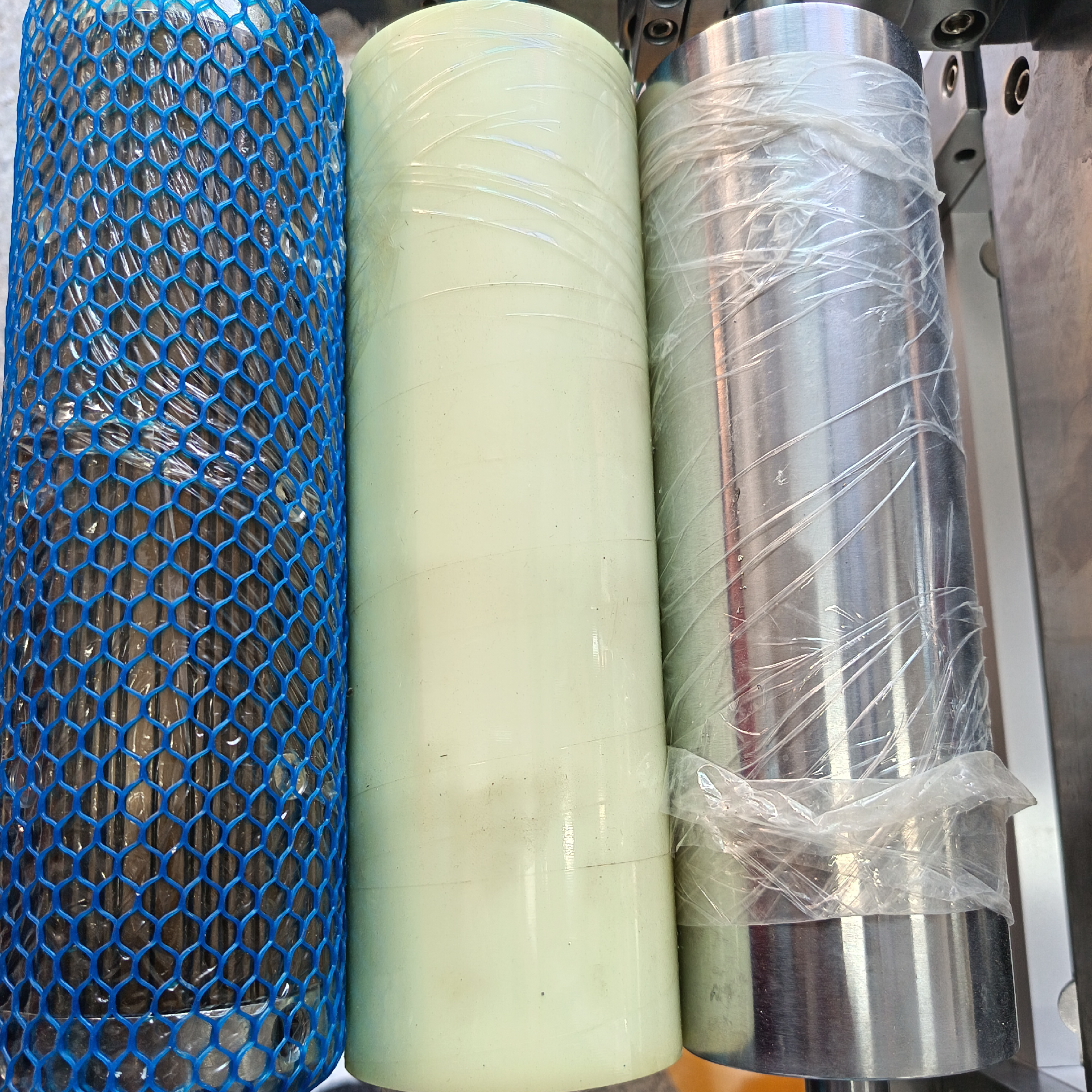

4. Casting: The combined molten layers are cast onto a chilled roll or through a water bath to solidify into a film or sheet.
5. Winding: The solidified film or sheet is wound onto rolls for further processing or packaging.
Versatility: Can produce films or sheets with different properties by combining various materials.
Enhanced Performance:Multi-layer films can offer improved barrier properties, strength, and functionality compared to single-layer films.
Cost-Effectiveness:Can reduce material costs by using thinner layers of expensive materials sandwiched between cheaper layers.
Efficiency:Produces multi-layer films in a single process, reducing production time and costs.
| Model | OLT-432(Single layer) | OLT-432-2(Double layers) | OLT-432-3(Three layers) |
| Screw diameter (mm) | 25 | 25 | 25 |
| L/D | 1:33 | 1:33 | 1:33 |
| Screw speed (Speed Adjustable) | 0~95rmp | 0~95rmp | 0~95rmp |
| Main Motor power (KW) | 2.2 | 2.2*2 | 2.2*3 |
| Die | Hanger Type | Hanger Type | Hanger Type |
| Die lip width | 300 or cunstomzied | 300 or cunstomzied | 300 or cunstomzied |
| Machine size(H*W*D)mm | 2500*800*1700 | 2600*960*2100 | 3200*1200*2100 |
| Power Supply | 3∮, AC380V | 3∮, AC380V | 3∮, AC380V |
Packaging: Food packaging, pharmaceutical packaging, industrial packaging.
Electronics: Flexible printed circuit boards, insulation films, display films.
Medical: Wound dressings, drug delivery systems, medical device components
