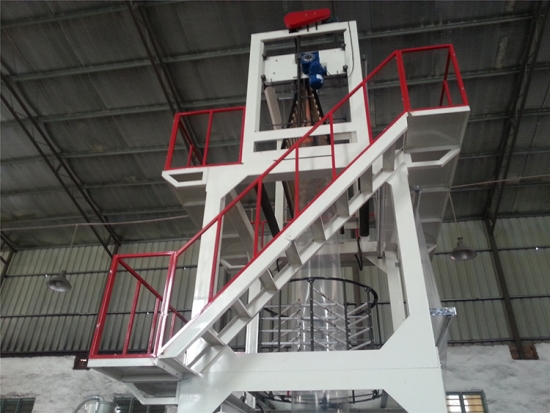

Industrial film blowing machine is used to blow HDPE, LDPE, LLDPE and other plastic films, mass production of high-quality films
| Brand: | OLLITAL |
| Model: | OLT-50HL |
| Warranty: | 1 year |
| Power | 3∮, AC380V |
| Delivery time: | 7-15 days |
* All our products can be customized according to drawings and requirements.Contact our engineers now to find out the most suitable and cost-effective solution !
| Automatic | Yes |
| Weight | 4500kg |
| Servo motor | China |
| Inverter | China |
| Main motor | China |
| Blow Moulding Type | Extrusion Blow Moulding |
| Power | 180KW |
| Model | MD-HL50 | MD-HL55 | MD-HL60 | MD-HL65 |
| Suitable Material | HDPDE/LDPE/LLDPE | |||
| Max Film width(mm) | 600 | 800 | 1000 | 1200 |
| Film Thickness(mm) | HD:0.008-0.08 LD:0.02-0.15 | |||
| Max Extrusion Output | HD 40kg/hr | 50kg/hr | 60kg/hr | 80kg/hr |
| LD 50kg/hr | 60kr/hr | 70kg/hr | 100kg/hr | |

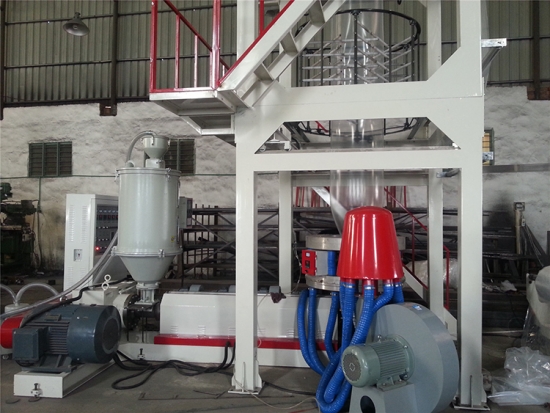

| Extrusion Unit | ||||
| Gear Box | 146 | 173 | 173 | 200 |
| Screw Diameter | ø50 | ø55 | ø60 | ø65 |
| Screw L/D Ratio | 28:1 | |||
| Screw's Material | 38CRMOALA | |||
| Barrel's Material | ||||
| Barrel's Cooling Fan | 25W*2 | |||
| Thermo Control(zone) | 3 | 3 | 3 | 4 |
| Driving Motor(kw) | 11 | 18.5 | 22 | 30 |
| Extrusion Die | ||||
| Die Rotary Device | 360°Continue Rotary | |||
| Screen Changer | Standard Manual | |||
| Thermo Control(zone) | 2 | |||
| Air Ring(mm) | ø620 | ø760 | ø760 | ø760 |
| Cooling Blower(kw) | 1.5 | 2.2 | 2.2 | 2.2 |
| Center Steady Stick | 1PCS | |||

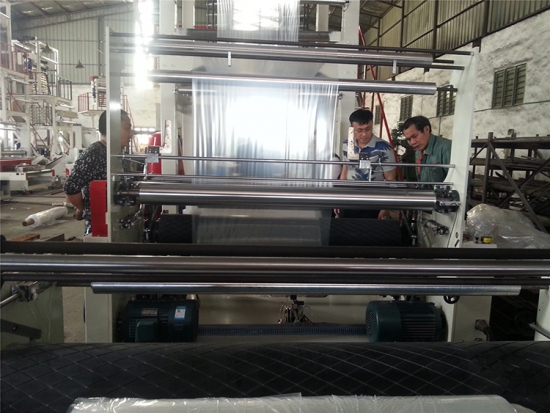

| Winding Unit | ||||
| Type OF Winder | Surface Friction Winder | |||
| Roller Width(mm) | 700 | 900 | 1000 | 1300 |
| Winding Motor(N.M) | 6 | 10 | 10 | 16 |
| Winding Speed(M/min) | 10-60 | |||
| Voltage | 380V,50HZ,3PHASW | |||
| Take-UP Unit | ||||
| Roller Width(mm) | ø138*650 | ø138*850 | ø138*1000 | ø138*1300 |
| Embossing Roller Width | 550mm | 750mm | 1000mm | 1200mm |
| Take-UP Motor(kw) | 0.75 | 1.1 | 1.1 | 1.5 |
| Take-UP Speed(M/min) | 10-60 | |||
| Height Adjustable Type | 700mm | |||
