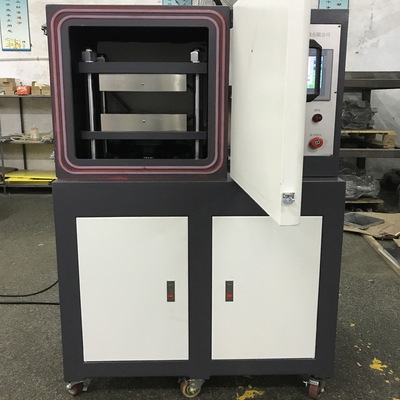

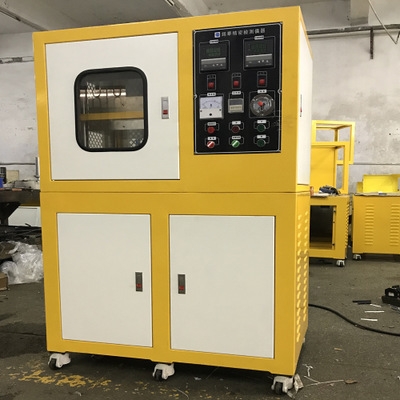

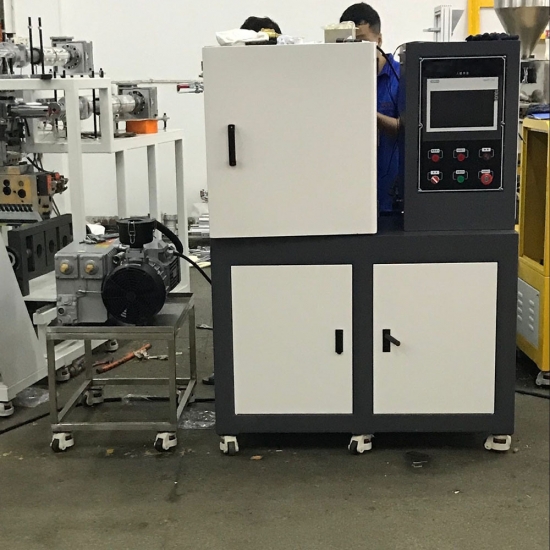

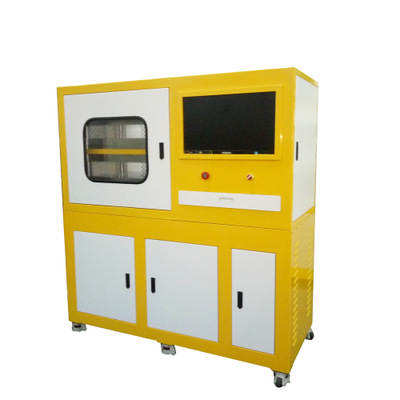

The vulcanizer places the material in a mold, sandwiches it between electrically heated plates, and applies pressure and temperature to shape the material.
| Brand: | OLLITAL |
| Model: | OLT-406A |
| Warranty: | 1 year |
| Delivery time: | 7-15 days |
| Weight: | 210kg |
| Voltage: | 3∮,AC380 or customized |
| Length, width and height: | 750*400*800 mm |
* All our products can be customized according to drawings and requirements.Contact our engineers now to find out the most suitable and cost-effective solution !

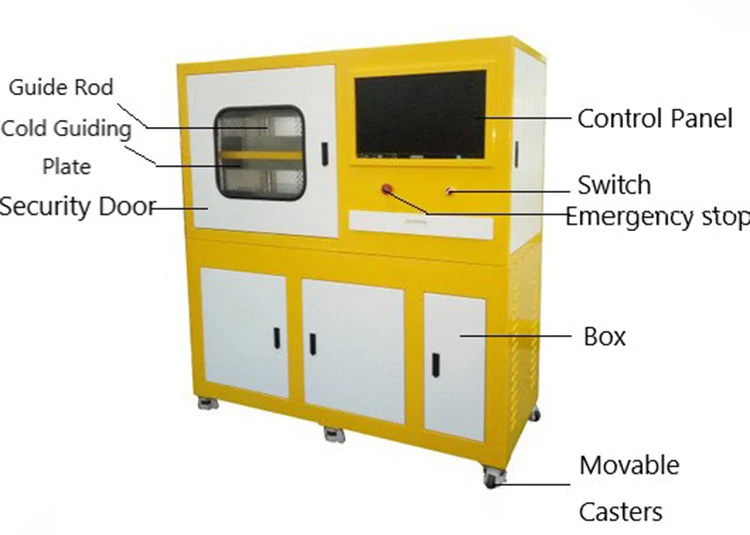

The vulcanizer, also known as a curing press, is a key device in the rubber industry. It uses heat and pressure to carry out the vulcanization process of rubber, transforming raw rubber into a more durable and elastic material. It consists of components like the heating system, pressure system and control system. Vulcanizers come in various types, such as flat and injection vulcanizers, widely used in manufacturing tires, rubber seals and other rubber products.
| Model | OLT-406A | OLT-406B | OLT-406C | OLT-407 |
| Control mode | Manual Type | Electric Type | PLC Control | Vacuum |
| Pressure(T) | 10/20/30/50/75/100 tons or customized | |||
| Temperature range | Room temperature -300 ℃ | |||
| Size od working board(mm) | 300*300mm or customized | |||
| Volume(mm) | 750*400*800mm | 1000*600*1600mm | 1000*600*1600mm | 1100*600*1700mm |
| Weight(kg) | 210 | 750 | 750 | 800 |
| Power supply | 3∮,AC380 | |||
| Special models can be designed according to customers' requirements | ||||
* All our products can be customized according to drawings and requirements. Contact our engineers now to find out the most suitable and cost-effective solution!
