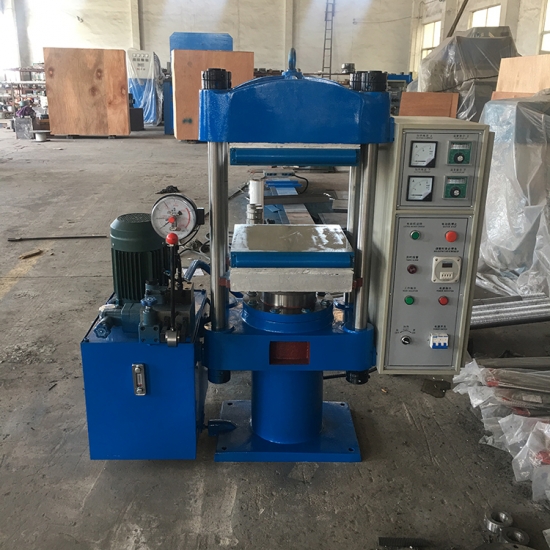

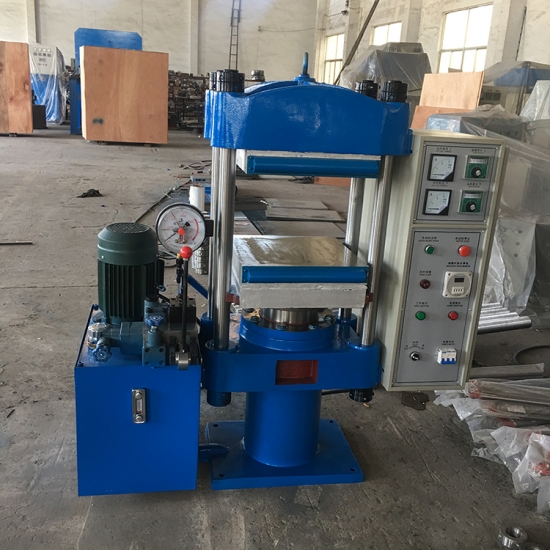

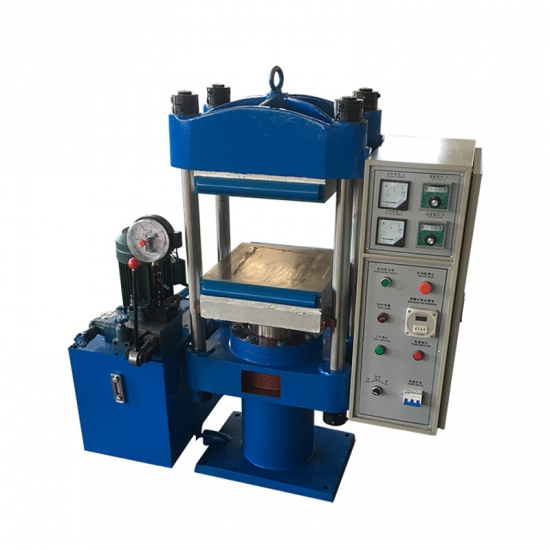

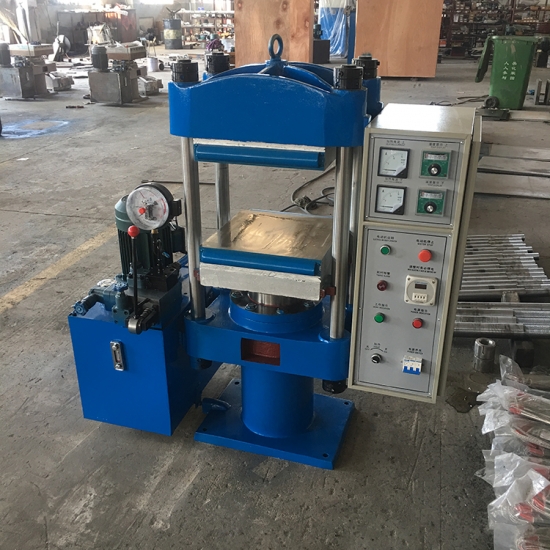

Automatic Hot Plate Spacing Hydraulic Press Vulcanizer

1. The machine has the functions of automatic button up, manual exhaust, automatic pressure compensation, automatic timing, automatic constant temperature, and manual down (pull the hand handle after the alarm).

2. Description of the main components of the host:

 2.1. Column: The column is made of high-quality 45# steel, which is refined and polished after quenching and tempering treatment, which enhances the overall strength and abrasion resistance of the column.

 2.2. Upper and lower bases and platforms: all made of QT500-7 ductile iron. It is finished after high temperature tempering and aging treatment to eliminate internal stress and prevent deformation.

 2.3 Plunger: The plunger is made of QT500-7 ductile iron. The surface of the plunger is quenched and then finely machined. The material and manufacturing process have high surface hardness and are not easy to wear, which improves the overall service life of the plunger. Abrasion resistance.

 2.4. Hot plate: The hot plate is made of Q235A high-quality carbon steel, after quenching and tempering, it is made of fine processing and grinding, with good surface finish and strong wear resistance.

 2.5. Seals: The cylinder seals are made of YX high-quality polyurethane oil seals, which are resistant to oil, aging and abrasion.

 2.6 Heat insulation board: The heat insulation board adopts high-quality calcium silicate board, with a pressure resistance of 3.5Mpa and a heat insulation coefficient of 0.031.

 2.7. Hydraulic system: all hydraulic devices adopt national standard components in accordance with national standard requirements, easy to buy and replace, reasonable layout, and easy to maintain and repair. In addition: the hydraulic station oil tank is designed reasonably, occupies a small area, and has a small capacity.

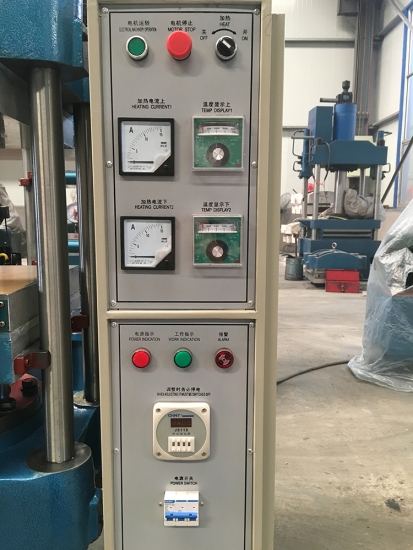

 2.8. Electrical system: This electromechanical device adopts the well-known brands of Chint and Delixi. The electrical device has small size, compact structure, fatigue resistance, and is suitable for continuous high-strength work.

Technical Parameters

* All our products can be customized according to drawings and requirements. Contact our engineers now to find out the most suitable and cost-effective solution!

Advantage

1.Double column construction 2.Easy operation and repair 3.Wear-resisting,corrosion resisting,high hardness and long life

Application

1.Applicable for various rubber moulding productiony

2.PLC control & touch screen

3.Auto mold closing, air exhaust, temperature control, timing setting

4.Custom mold push out system

5.Well-sealed hydraulic cylinder with precise grinding and finishing

6.Stable hydraulic pressure station

Details
